Sale!

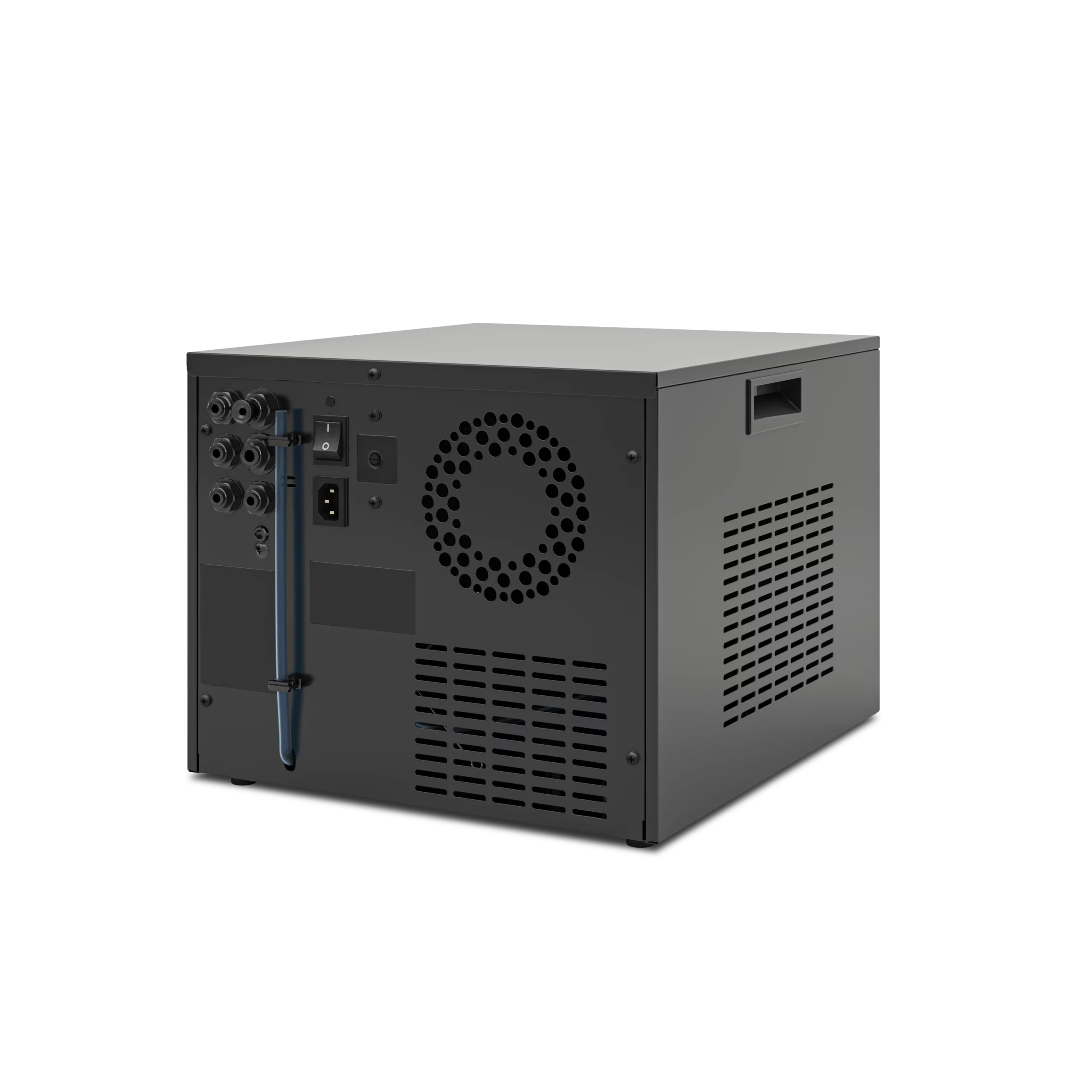

Q4 Under Counter
Original price was: $3,100.00.$2,999.00Current price is: $2,999.00.
Delivery & Installation
Shipping & Delivery
Gallery & Downloads
Warranty
ONE year standard warranty (exclusive of dispenser spigots/ taps)
Specifications
| Dimension (mm) | 317 (W) x 493 (D) x 565 (H) |
| Technology | Ice bank |
| Ice bank | 22 L capacity |
| Types of water | Ambient, Cold, Sparkling |
| Test conditions | 20°C incoming water and 25°C room temperature |
| Performance | 150 liters per hour; 80 L continuously < 12°C |
| Portions with flow meter | 2 buttons for selection small/large dose |
| Usage recommendation | Horeca: >100 people |
| Carbonator | Stainless steel carbonator, 1 L capacity |
| Sparkling system | Double sparkling Quaba Tech |
| Carbonation Pump | Vane pump 200 L/h |
| Refrigeration gas | R290 |
| Compressor | 1/3 HP ; 220/230 V 50 Hz |
| Thermostat | Mechanical |
| Condensation | Dynamic ventilation |
| Coils | 8 mm stainless steel |
| Ø Water Inlet | 8 mm |
| Ø C02 Inlet | 8 mm |
| Ø Fill Ice bank | 8 mm |
| Water inlet pressure | Not over 3 bar – recommended reducer |
| CO2 inlet pressure | Ideal pressure: in between 3,5 – 4,5 bar |
| Finish | Inside in stainless steel, housing in skinplate |
| Power Supply | 230 V – 50 Hz |
| Weight | 34 Kg |
| Flow regulator | Included inside the unit |
| Filtration | Not included |
| Water pressure reducers | Not included |
| CO2 pressure reducers | Not included |

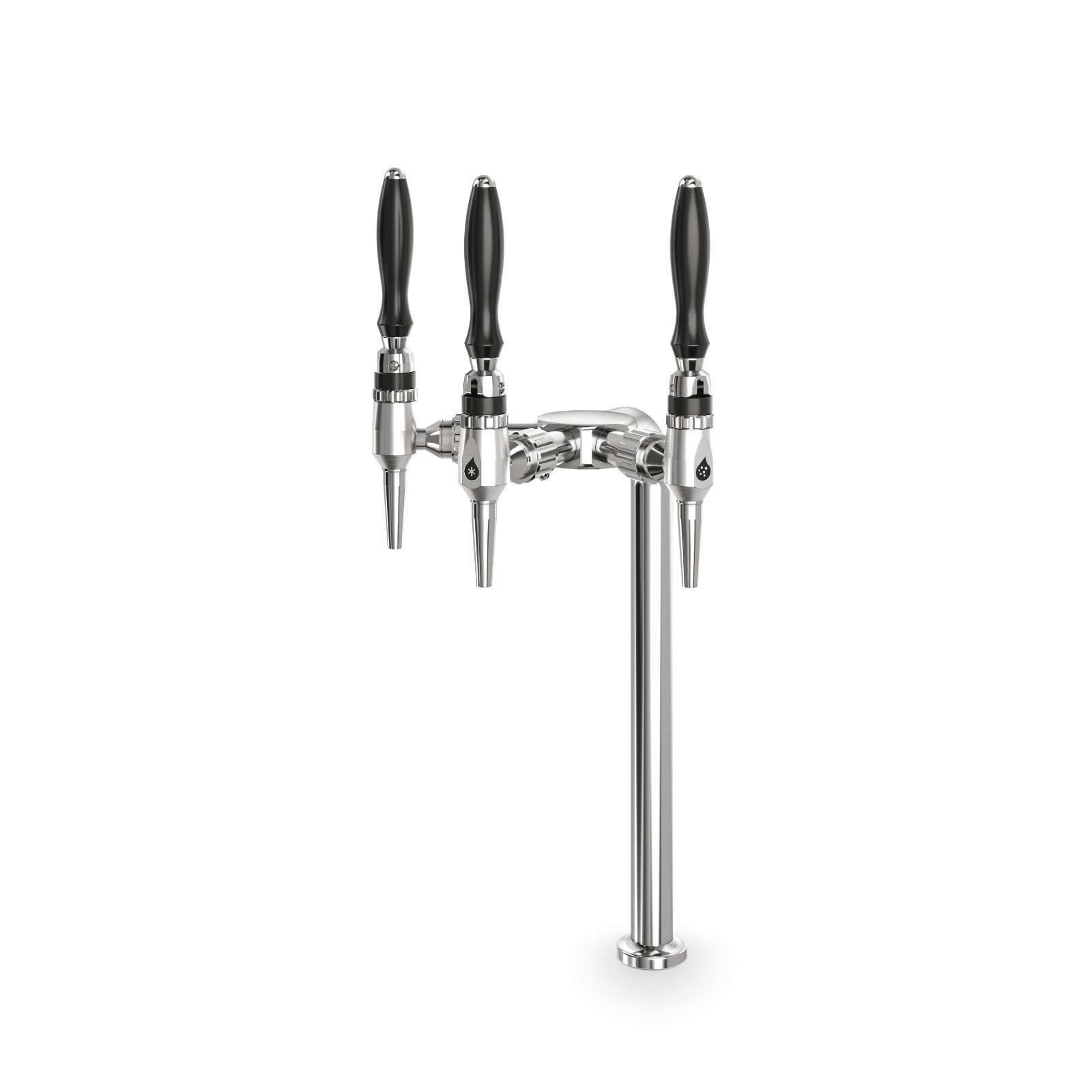

Faucet
High Capacity
Its suggested use is ideal to cover the needs of 80-100 people.

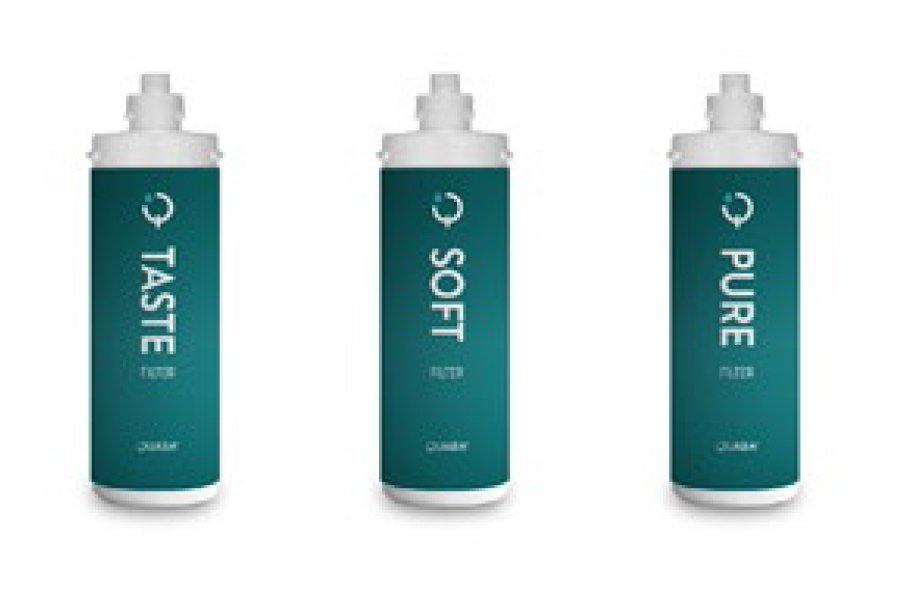

Replaceable Filter
Three types of filter for 3 different needs: QTaste improves the flavour of the water, QSoft reduces the hardness and QPure offers the maximum grade of filtration.

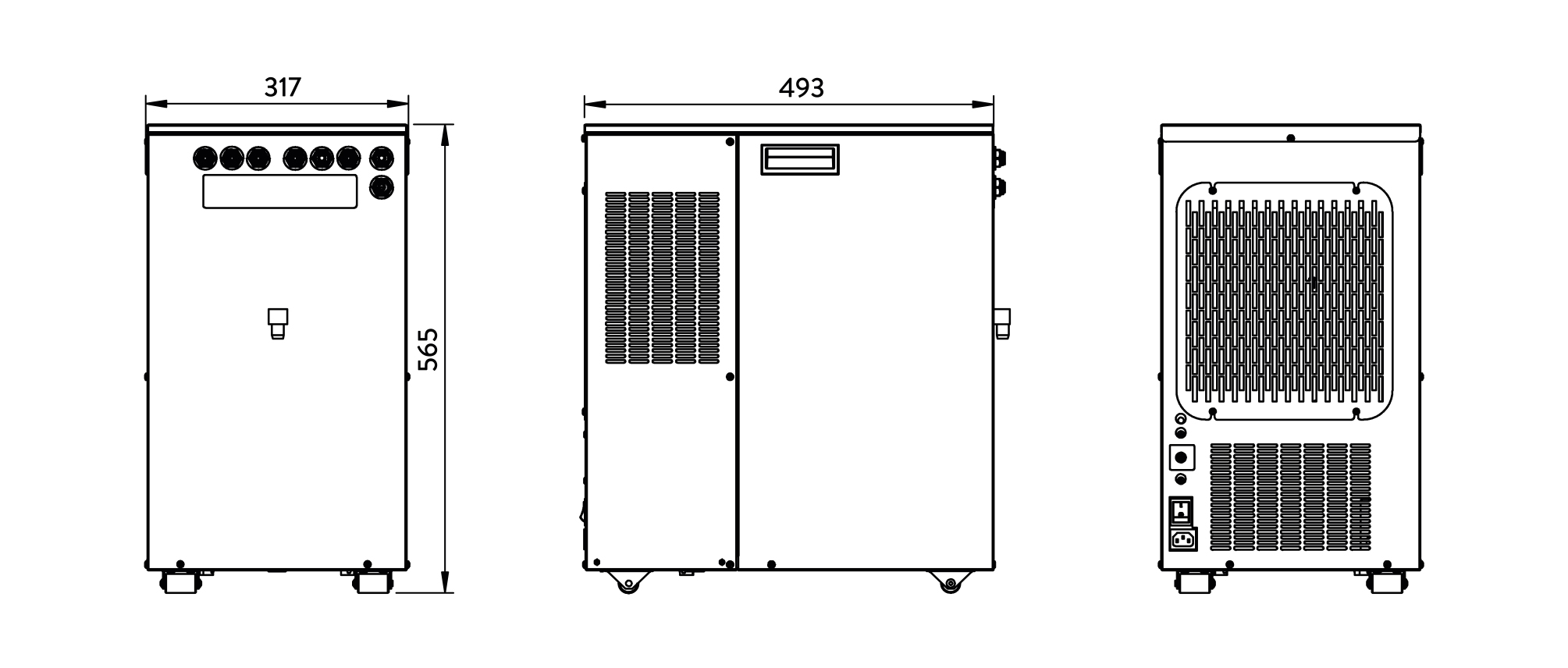

Size
Millimeters
